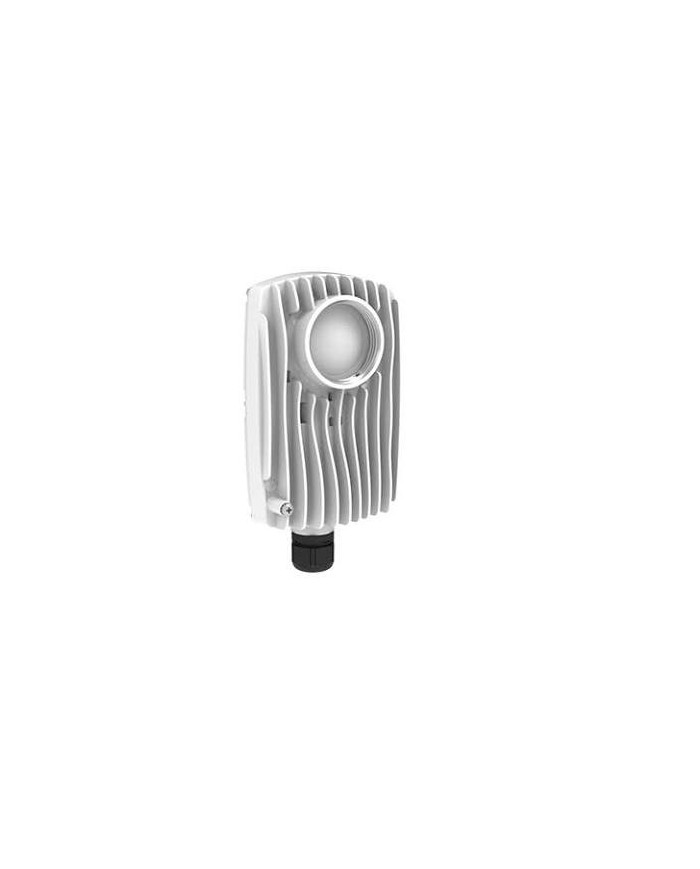

Mimosa C6x-LE 5.1-6.4GHz Radio w/Modular Antennas Lite Edition
The Mimosa C6x-LE is a 5.1–6.4 GHz wireless radio built for high-performance PTP and PTMP broadband connectivity. Featuring up to 1 Gbps PTP throughput, modular N5-X antenna compatibility, Gigabit Ethernet, and Passive PoE support, it provides a flexible and cost-effective solution for outdoor wireless deployments.
Delivering reliable high-capacity connectivity for modern broadband infrastructure, the Mimosa C6x Lite Edition (LE) adapts easily to both point-to-point and point-to-multipoint architectures using a flexible modular framework. Operating across a 5150–7125 MHz spectrum, the hardware reaches maximum aggregate speeds of 1.0 Gbps in point-to-point configurations and 750 Mbps in multipoint modes, fulfilling the demands of subscriber links, short-range backhaul runs, and network expansion. Operators can attach optional N5-X twist-on modules to the built-in 8 dBi antenna, tailoring signal coverage and link performance from 12 to 30 dBi to specific physical sites without exceeding budgets.
Exterior resilience comes from an IP67-rated die-cast aluminum housing that protects against harsh weather conditions, while Gigabit Ethernet, Passive PoE, and smart spectrum management tools maintain consistent link performance. Network administrators also benefit from robust authentication protocols and encryption standards like AES and RADIUS, making the hardware a practical fit for wireless service providers, enterprise sites, and rural deployment projects.
Product Highlights:
- 5150–7125 MHz frequency range
- Up to 1.0 Gbps (PTP) and 750 Mbps (PTMP) capacity

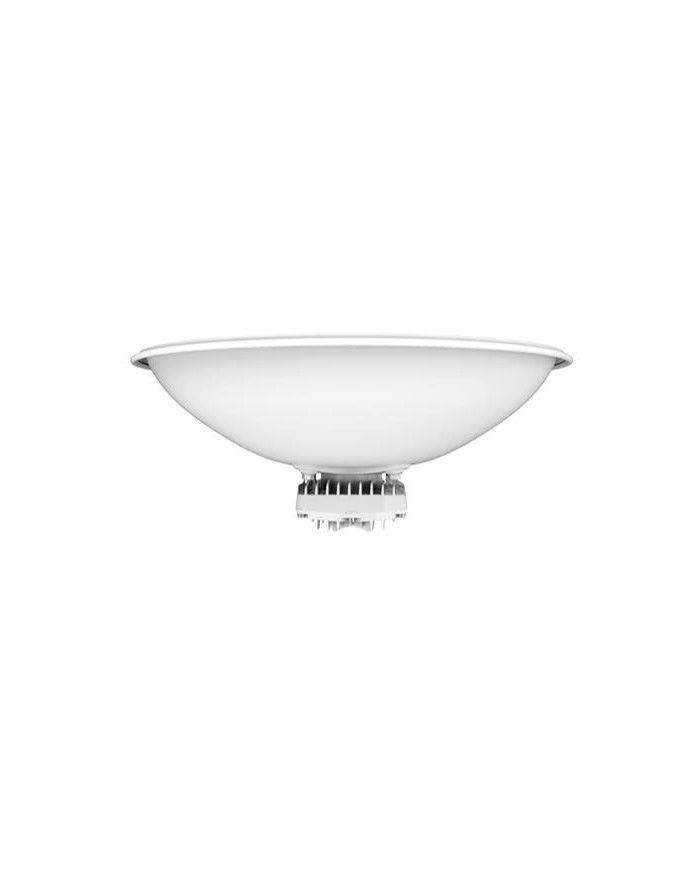

- Built-in 8 dBi antenna with optional N5-X modules (12–30 dBi)
- Gigabit Ethernet with Passive PoE
- IP67-rated die-cast aluminum housing
- Smart spectrum management
- AES, RADIUS, and 802.1X security
- 2x2 MIMO up to 1024-QAM
Data sheet
| Dimensions | Height: 178mm (5”) | Width: 113mm (4.5”) | Depth: 67mm (2.6”) |
|---|---|
| Power Consumption | 20 W |
| Frequency Range | 5150–7125 MHz (HW/Chip supported and restricted by country of operation) |
| Weight | 0.7 kg (1.54 lbs) |
| Max Throughput | PTP: 1.0 Gbps IP aggregate, PTMP: 750 Mbps IP aggregate UL/DL (1200 Mbps PHY) |
| Modulation | 2x2, PTMP MU-MIMO, BPSK-1024QAM |
| Power Supply | Compliant, 24 V (PoE injector not included) |
| Operating Mode | PTP backhaul, PTMP client |
